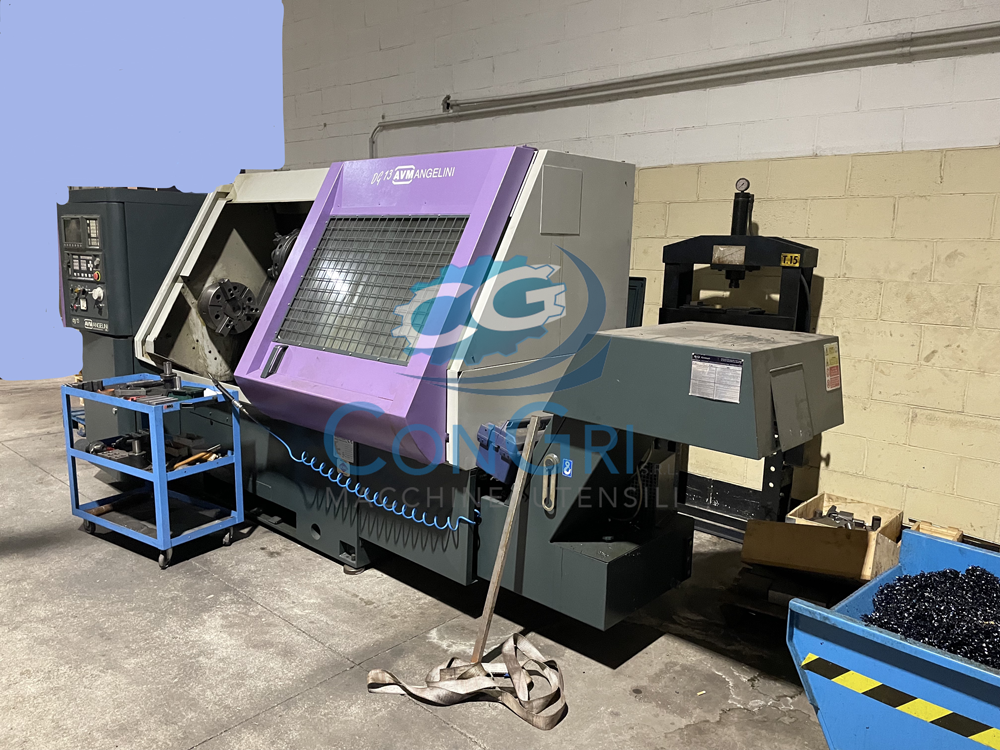

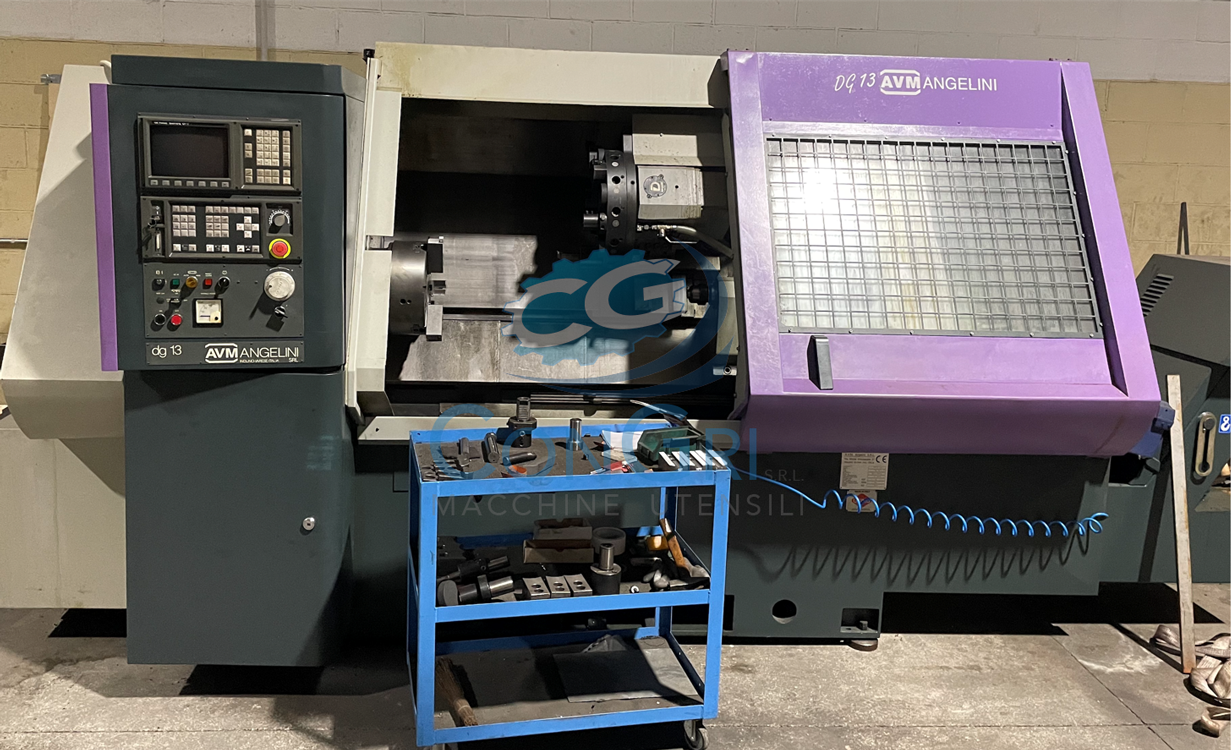

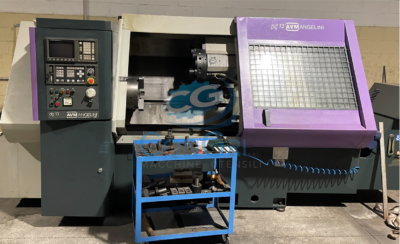

CNC lathe DG 13 by AVM AGELINI with C axe and motorized
CNC lathe DG 13 AVM AGELINI with C axe and motorized
ConGri Macchine Utensili offers a CNC lathe DG 13 AVM AGELINI with C axis and motorized. Contact us for more information!
Technical data sheet
| YEAR | 1999 |
| DISTANCE BETWEEN SPINDLE NOSE | mm.800 |
| ROTATING DIAMETER (max) | |
| TURNING DIAMETER (max) | mm. 400 |
| MAIN SPINDLE: | |
| SPINDLE NOSE (ASA attachment) | Asa A2-11 |
| SPINDLE SPEED (min./max.) | |
| POWER OF THE SPINDLE ENGINE (kW) | Kw 25 |
| BAR PASSAGE | mm. 90 |
| COUNTERSPINDLE: | |
| SPINDLE NOSE (ASA attachment) | |
| SPINDLE SPEED (min./max.) | |
| POWER OF THE SPINDLE ENGINE (kW) | |
| BAR PASSAGE | |
| NUMBER OF UPPER TURRETS | 1 |
| NUMBER OF LOWER TURRETS | |
| X SLIDE TRAVEL | |
| Z SLIDE TRAVEL | |
| Y SLIDE TRAVEL | |
| X2 SLIDE TRAVEL | |
| Z2 SLIDE TRAVEL | |
| Y2 SLIDE TRAVEL | |
| X3 SLIDE TRAVEL | |
| Z3 SLIDE TRAVEL | |
| Y3 SLIDE TRAVEL | |
| RAPID FEEDS | |

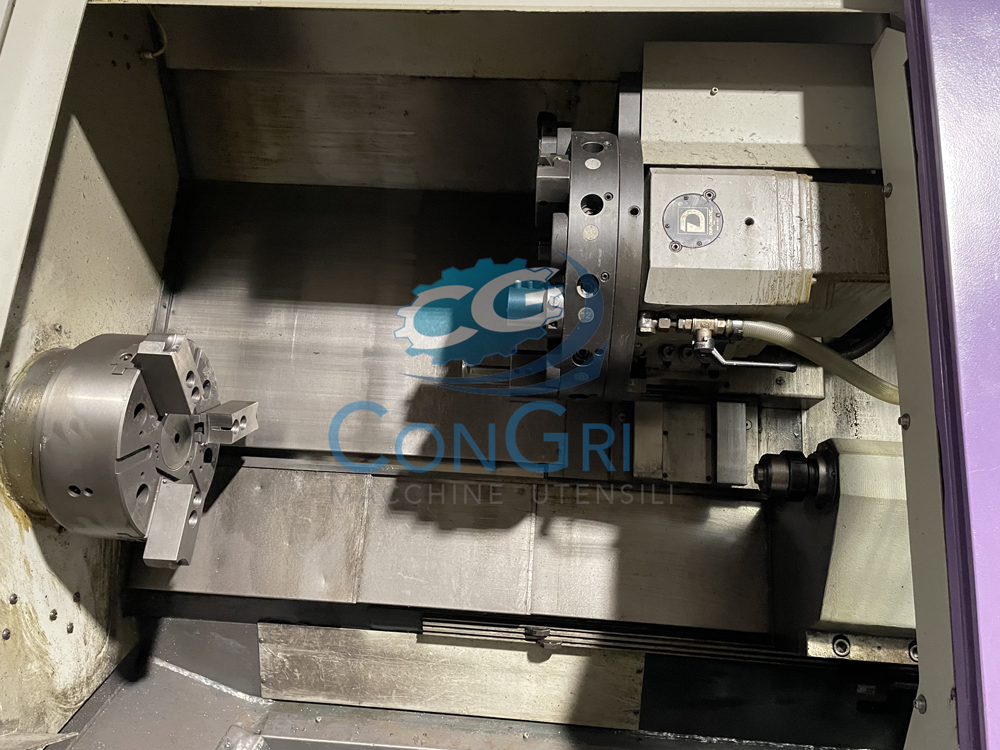

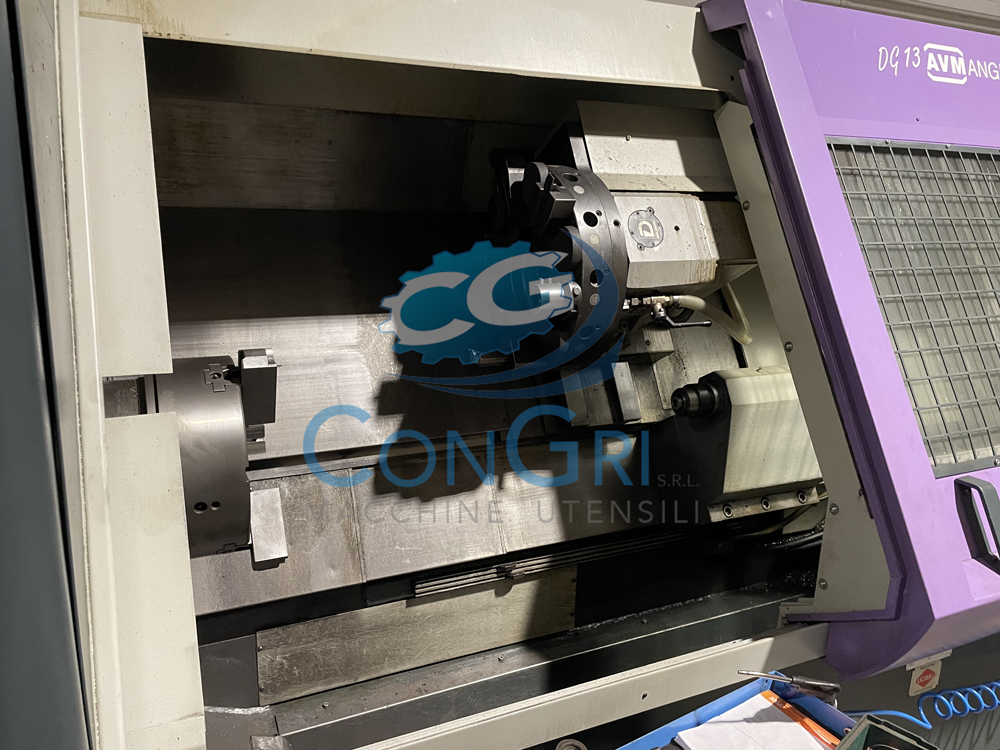

| TOOL TURRET (Model) | VDI 40 |
| NUMBER OF TOOL POSITIONS: | |
| T1 | 12 |
| T2 | |
| T3 | |
| CONTROL | Fanuc 0T |
| DIMENSIONS L P H | |
| WEIGHT | |

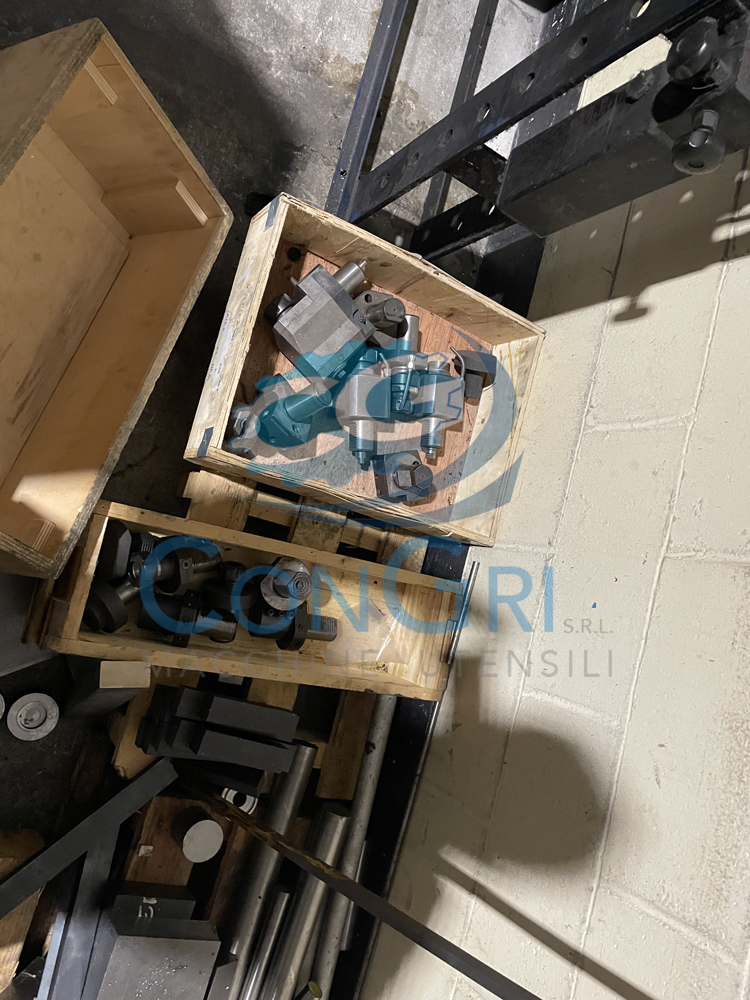

| ACCESSORIES INCLUDED | Motorized turret / C-axis / Hydraulic chuck Diam. 315 / Chip conveyor / Hydraulic tailstock / Tool setting / Static toolholders kit / Axial motorized / Radial motorized |
| NOTES |
All technical data shown are indicative, may be changed without notice and refer to the standard condition of new goods. Used goods may not have the same performance as new.
