CNC Lathe Nakamura Tome Super NTM3

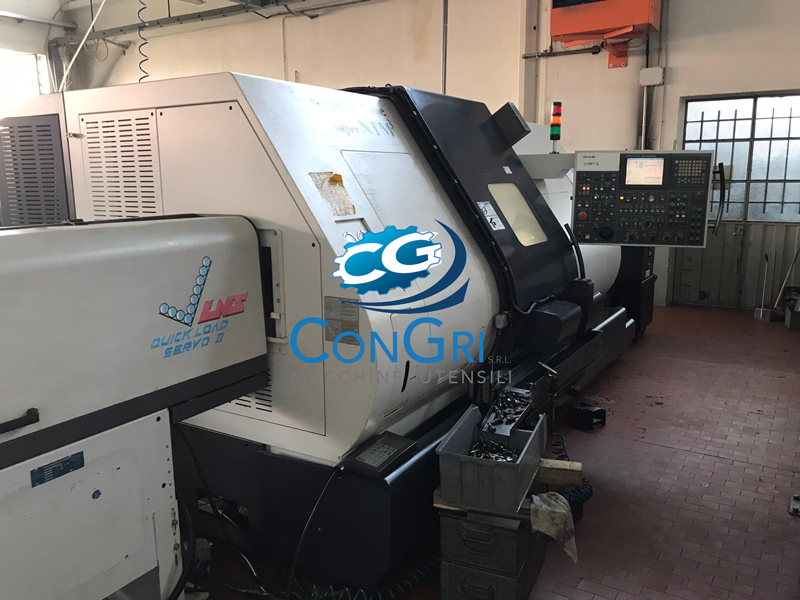

Nakamura Tome Super NTM3 Lathe
ConGri Macchine Utensili offers a Nakamura Tome Super NTM3 Lathe with 3 turrets and 2 Y axis. 65 mm bar passage.
Data Sheet
| YEAR | 2004 |
| DISTANCE BETWEEN SPINDLE NOSE | Max mm. 970 / Min. mm. 210 |
| ROTATING DIAMETER (max) | / |
| TURNING DIAMETER (max) | mm. 190 |
| MAIN SPINDLE | |
| SPINDLE NOSE (ASA attachment) | Asa A2-6 |
| SPINDLE SPEED (min./max.) | g./min. 4.500 |
| POWER OF THE SPINDLE ENGINE (kW) | Kw. 15/11 |
| BAR PASSAGE | mm. 65 |
| COUNTERSPINDLE: | |
| SPINDLE NOSE (ASA attachment) | Asa A2-5 |
| SPINDLE SPEED (min./max.) | g./min. 5.000 |
| POWER OF THE SPINDLE ENGINE (kW) | Kw. 11/7,5 |
| BAR PASSAGE | mm. 51 |

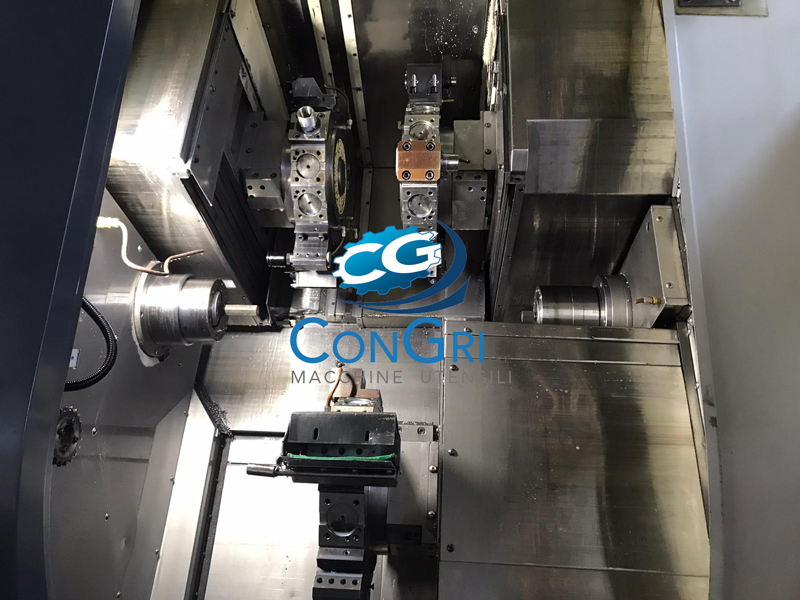

| NUMBER OF UPPER TURRETS | 2 |
| NUMBER OF LOWER TURRETS | 1 |
| X SLIDE TRAVEL | mm. 167,5 |
| Z SLIDE TRAVEL | mm. 250 |
| Y SLIDE TRAVEL | mm. 102 (+61mm / -41mm) |
| X2 SLIDE TRAVEL | mm. 167,5 |
| Z2 SLIDE TRAVEL | MM. 250 |
| Y2 SLIDE TRAVEL | mm. 102 (+61mm / -41mm) |
| X3 SLIDE TRAVEL | mm. 167,5 |
| Z3 SLIDE TRAVEL | mm. 685 |
| Y3 SLIDE TRAVEL | / |
| RAPID FEEDS | |
| TOOL TURRET (Model) | NAKAMURA STANDARD |
| NUMBER OF TOOL POSITIONS: | |
| T1 | 12/24 con posiz. Dodecagonale |
| T2 | 12/24 con posiz. Dodecagonale |
| T3 | 12/24 con posiz. Dodecagonale |

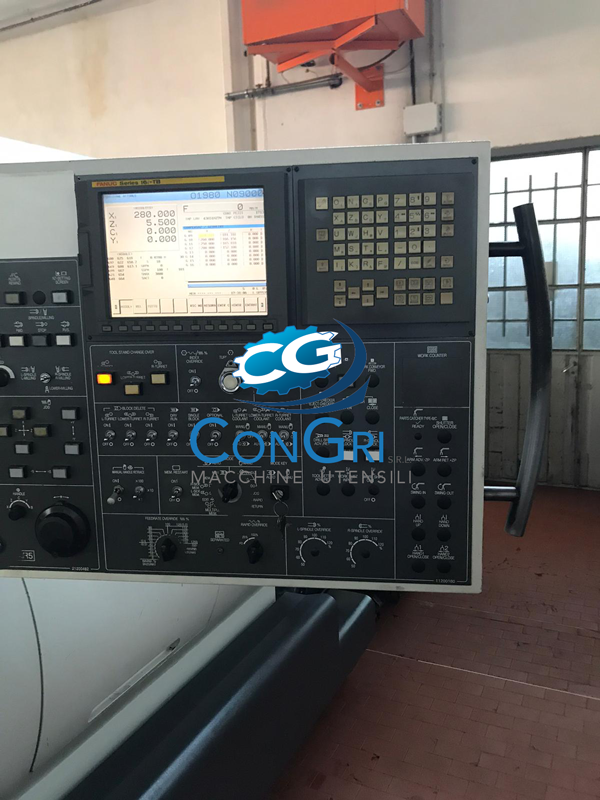

| CONTROL | Fanuc 16i-TB |
| DIMENSIONS L P H | mm.3.930 X 2.270 x 2.110 |
| WEIGHT | Kg. 12.000 |
| ACCESSORIES INCLUDED | N.1 belt swarf conveyor
n. 2 high pressure pumps (20 Bar) with switch to direct the water on the turrets n. 3+3 motorized toolholders Arrangement for bar pusher Additional tank with special paper filter Arrangement for smoke Aspirator external mat for finished pieces |
| NOTES |
