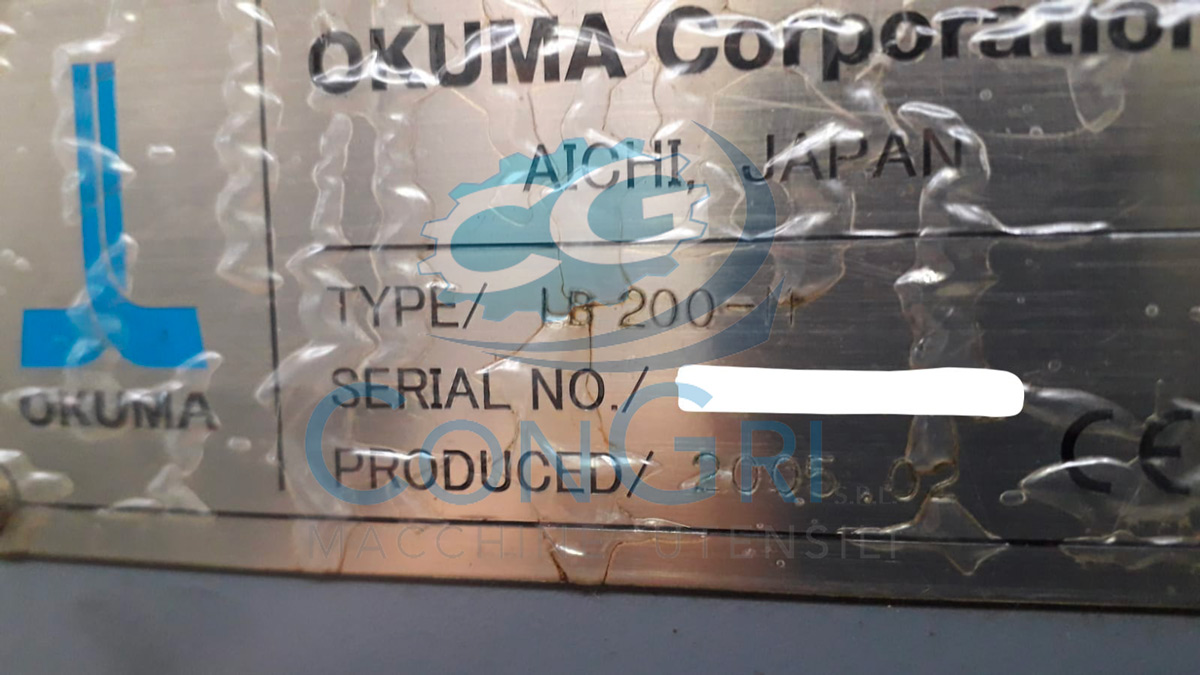

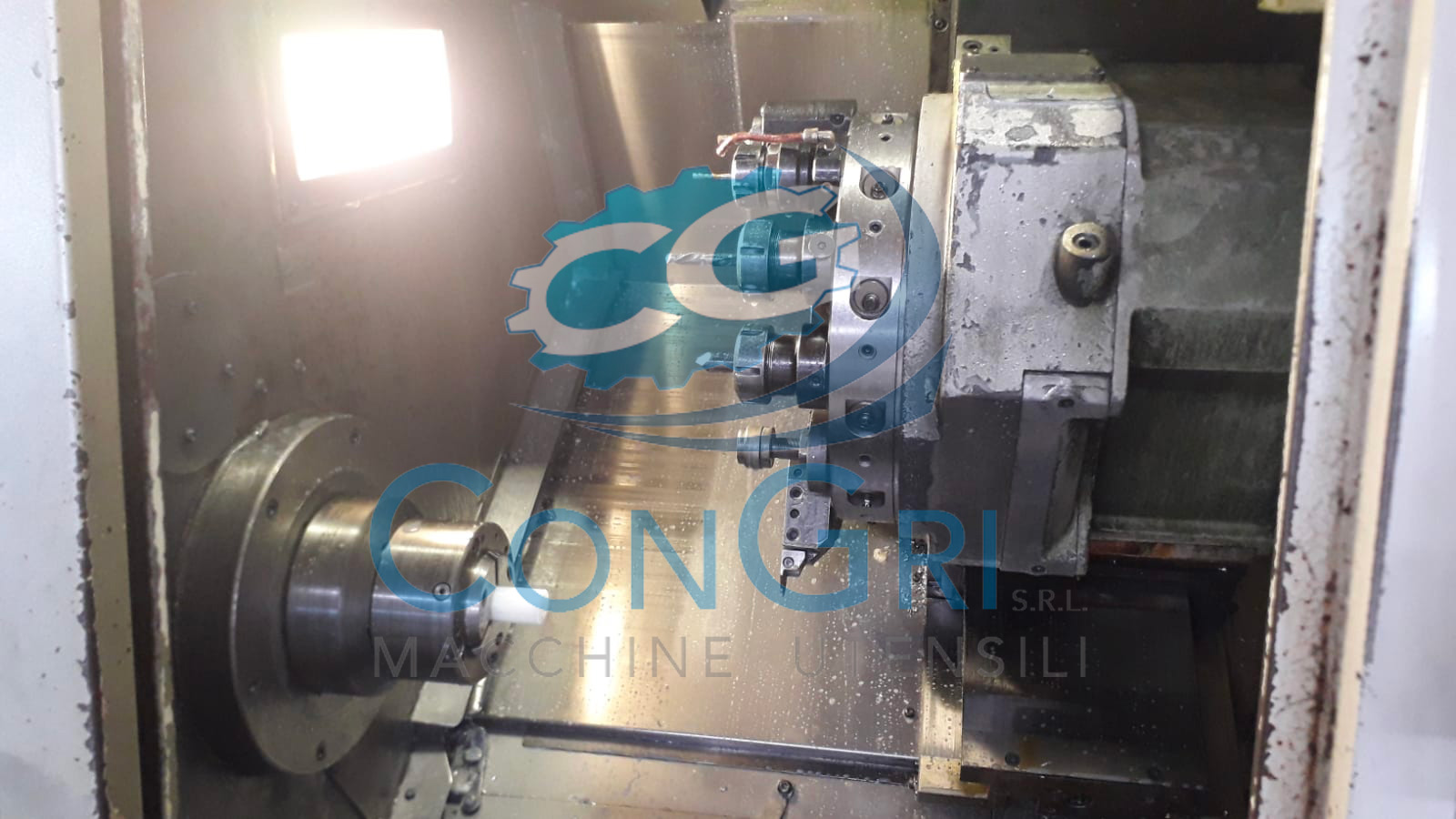

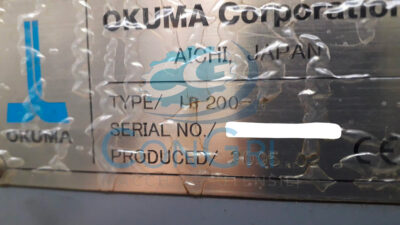

OKUMA LB200-M CNC Lathe
OKUMA LB200-M CNC Lathe

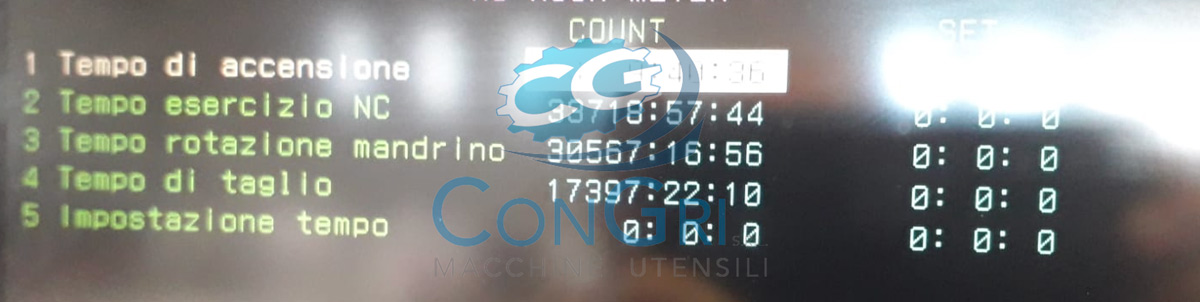

ConGri Macchine Utensili offers a used Okuma brand CNC lathe model LB200-M complete with accessories with 33000 actual working hours.
Technical data sheet
| YEAR | 2005 |
| DISTANCE BETWEEN SPINDLE NOSE | mm. 500 |
| ROTATING DIAMETER (max) | |
| TURNING DIAMETER (max) | mm. 230 |
| MAIN SPINDLE | |
| SPINDLE NOSE (ASA attachment) | Asa-6 |
| SPINDLE SPEED (min./max.) | g./min. 5.000 |
| POWER OF THE SPINDLE ENGINE (kW) | Kw 18 |
| BAR PASSAGE | mm. 45 |
| COUNTERSPINDLE: | |
| SPINDLE NOSE (ASA attachment) | |
| SPINDLE SPEED (min./max.) | |
| POWER OF THE SPINDLE ENGINE (kW) | |
| BAR PASSAGE | |
| NUMBER OF UPPER TURRETS | 1 |
| NUMBER OF LOWER TURRETS | |
| X SLIDE TRAVEL | |
| Z SLIDE TRAVEL | |
| Y SLIDE TRAVEL | |
| X2 SLIDE TRAVEL | |
| Z2 SLIDE TRAVEL | |
| Y2 SLIDE TRAVEL | |
| X3 SLIDE TRAVEL | |
| Z3 SLIDE TRAVEL | |
| Y3 SLIDE TRAVEL | |
| RAPID FEEDS | |
| TOOL TURRET (Model) | |
| NUMBER OF TOOL POSITIONS: | |
| T1 | 12 |
| T2 | |
| T3 | |
| CONTROL | OSP |
| DIMENSIONS L P H | mm. 2.200 X 1.734 X 1.839 |
| WEIGHT | |

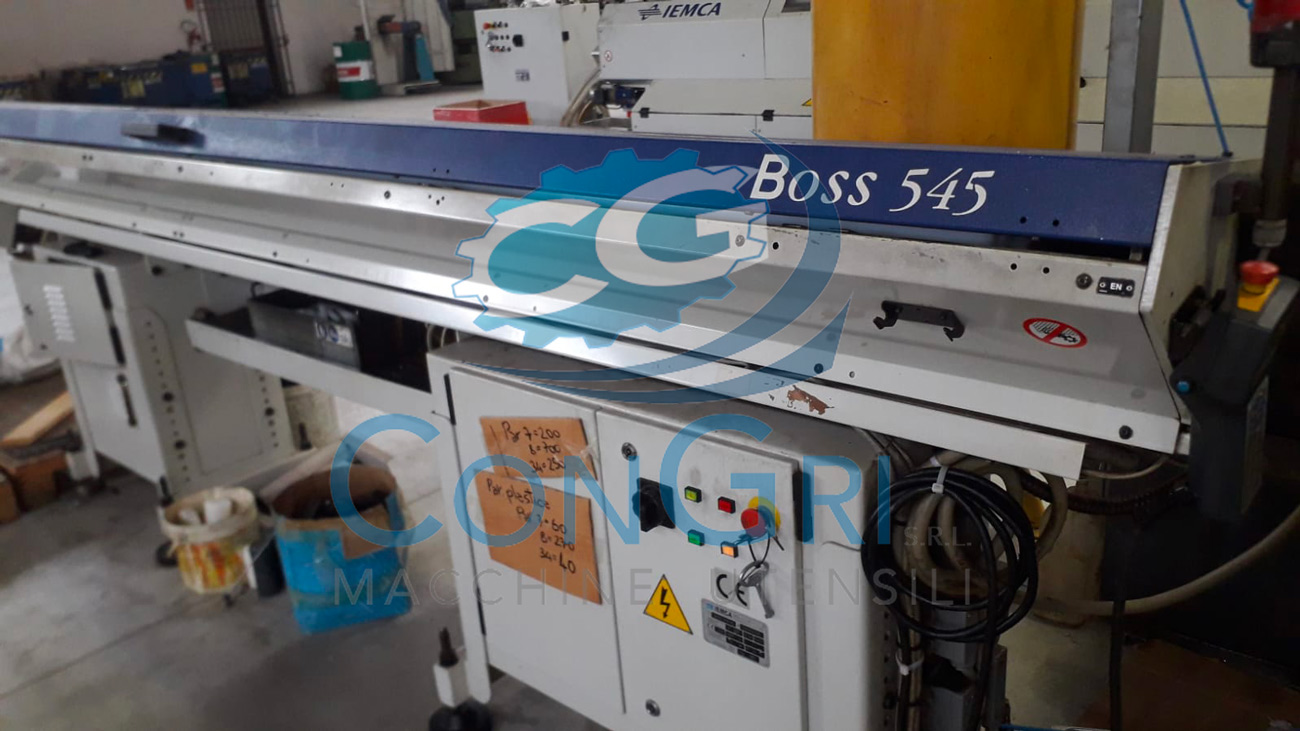

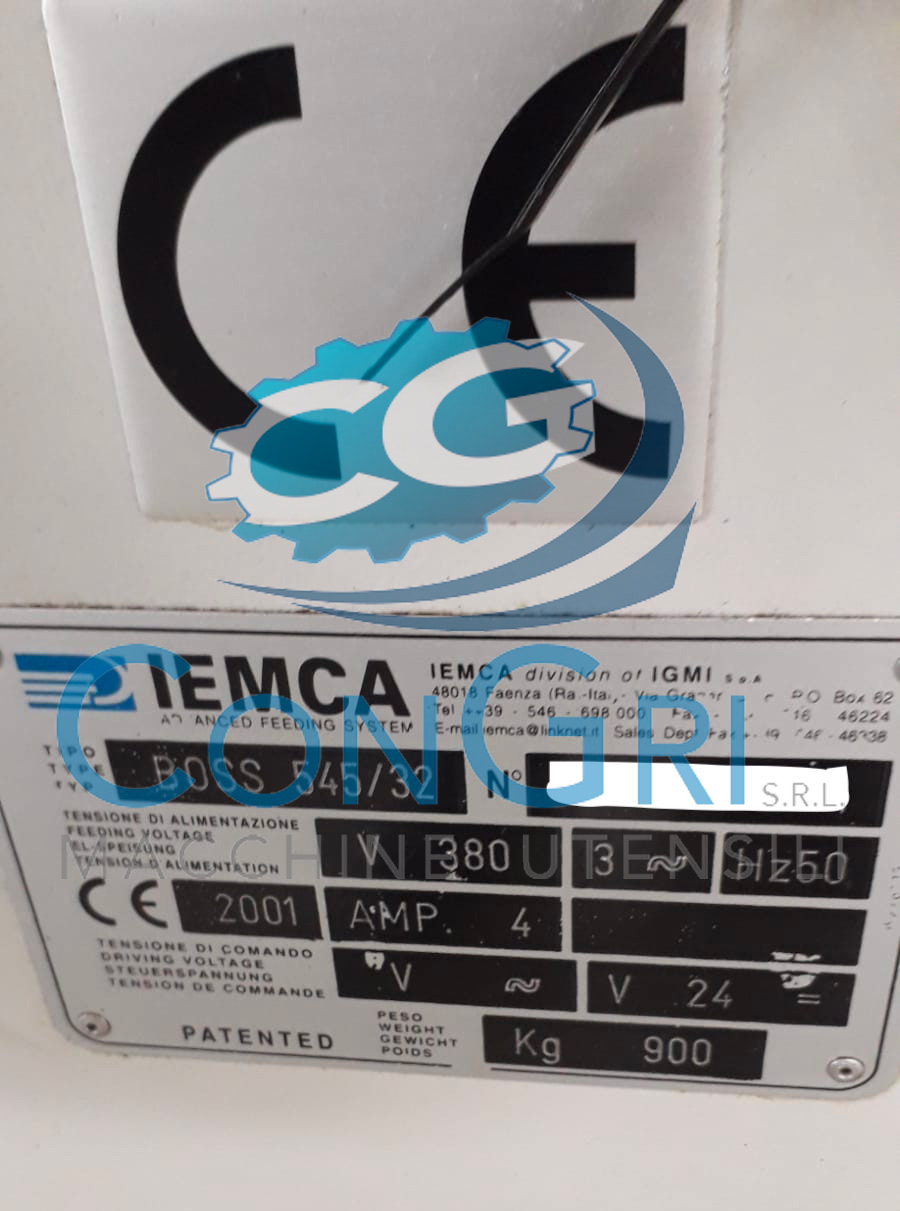

| ACCESSORIES INCLUDED | Without Tailstock / Iemca Boss 545 bar loader / bar pusher interface / Belt-type chip evacuator / Static + Motorized tool holder kit / Working hours 33,000 approx. |
All technical data shown are indicative, may be changed without notice and refer to the standard condition of new goods. Used goods may not have the same performance as new.
