Victor Taichung VT46/165 Lathe
Victor Taichung VT46/165 Lathe

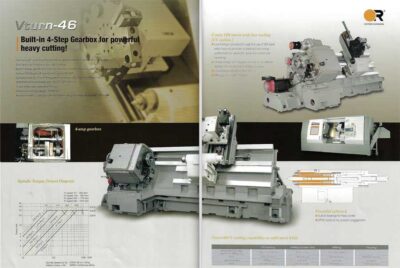

ConGri Macchine Utensili offers a Victor VT 46/165 lathe. The machine, from 2008, was used only for work under head (never with tailstock). This horizontal lathe is unique and well structured. The machine is equipped with a gearbox with as many as 4 power ranges, ideal for heavy removal work.
Available for live vision.
Data Sheet
| YEAR | 2008 |
| DISTANCE BETWEEN SPINDLE NOSE | mm. 1750 |
| ROTATING DIAMETER (max) | mm. 820 |
| TURNING DIAMETER (max) | mm. 730/mm. 520 Sul carro |
| MAIN SPINDLE | |
| SPINDLE NOSE (ASA attachment) | A2-11 (15") |
| SPINDLE SPEED (min./max.) | g./min. 1.500 |
| POWER OF THE SPINDLE ENGINE (kW) | Kw. 30/37 Con cambio Gamma meccanico 4 gamme |
| BAR PASSAGE | mm. 110 |
| COUNTERSPINDLE: | |
| SPINDLE NOSE (ASA attachment) | / |
| SPINDLE SPEED (min./max.) | / |
| POWER OF THE SPINDLE ENGINE (kW) | / |
| BAR PASSAGE | / |
| NUMBER OF UPPER TURRETS | 1 |
| NUMBER OF LOWER TURRETS | / |
| X SLIDE TRAVEL | mm. 365+25 |
| Z SLIDE TRAVEL | mm. 1650 |
| Y SLIDE TRAVEL | / |
| X2 SLIDE TRAVEL | / |
| Z2 SLIDE TRAVEL | / |
| Y2 SLIDE TRAVEL | / |
| X3 SLIDE TRAVEL | / |
| Z3 SLIDE TRAVEL | / |
| Y3 SLIDE TRAVEL | / |
| RAPID FEEDS | / |
| TOOL TURRET (Model) | Standard |
| NUMBER OF TOOL POSITIONS: | |
| T1 | 10 |
| T2 | / |
| T3 | / |
| CONTROL | Fanuc 0i-TC |
| DIMENSIONS L P H | mm. 6.210 x 2.167 x 2.365 |
| WEIGHT | Kg. 13.500 |
| ACCESSORIES INCLUDED | No. 1 belt swarf conveyor, hydraulic tailstock with rotating sleeve + fixed cusp, standard tool holder, hydraulic self-centering dia. 381 (15"). |
All technical data are indicative, may be changed without notice and refer to the standard conditions of the new good. The second-hand good may not have the same performance as the new one.
