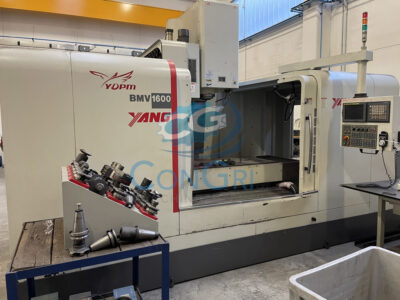

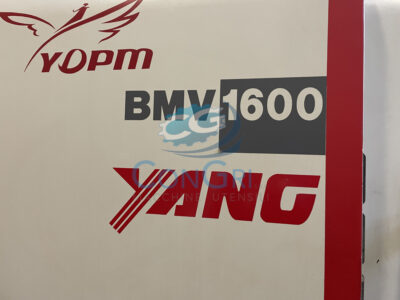

Yang BMV1600 vertical machining centre

ConGri Macchine Utensili offers a vertical machining centre Yang model BMV1600. Contact us for information.



Technical Datasheet



YEAR
X AXIS COURSE mm. 1625
Y AXIS COURSE mm. 850
Z AXIS COURSE mm. 762
SPINDLE NOSE DISTANCE TABLE TOP mm. 914
SPINDLE AXIS COLUMN DISTANCE
X-Y-Z RAPID FEEDS XYZ = 15.000 mm./min.
SPINDLE (ISO or other) Iso 50
SPINDLE MOTOR POWER KW kw 18,5
SPINDLE SPEED (Min. Max) Giri/Min. 4.000

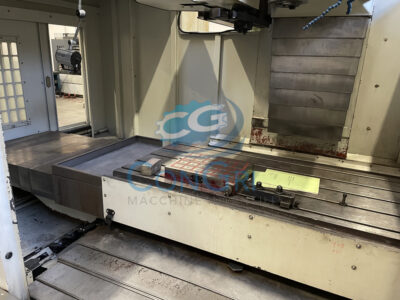

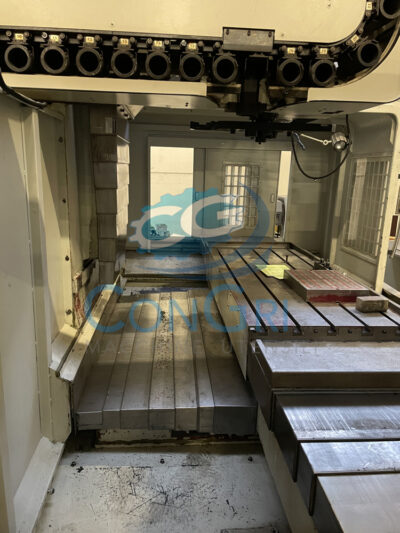

TABLE SIZE mm. 1700 X 870
MAX LOAD ALLOWED Kg. 2.500

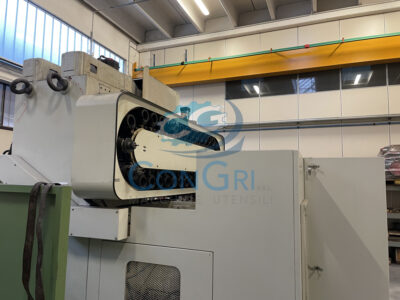

NUMBER OF TOOLS IN STOCK 40 Random
MAX. TOOL DIAMETER
MAX. TOOL LENGTH
MAX. TOOL WEIGHT
CHIP-TO-CHIP CHANGE TIME

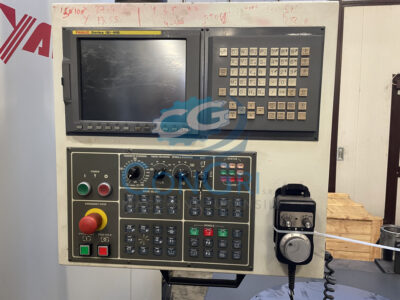

CONTROL Fanuc 18i-MB
DIMENSIONS L P H mm. 4.200 X 3.350 X 3.400
WEIGHT Kg. 20.500
ACCESSORIES
NOTES Chip conveyor belt + two internal augers / coolant pump / remote handwheel
All technical data shown are indicative, may be changed without notice and refer to the standard condition of new goods. Used goods may not have the same performance as new.
