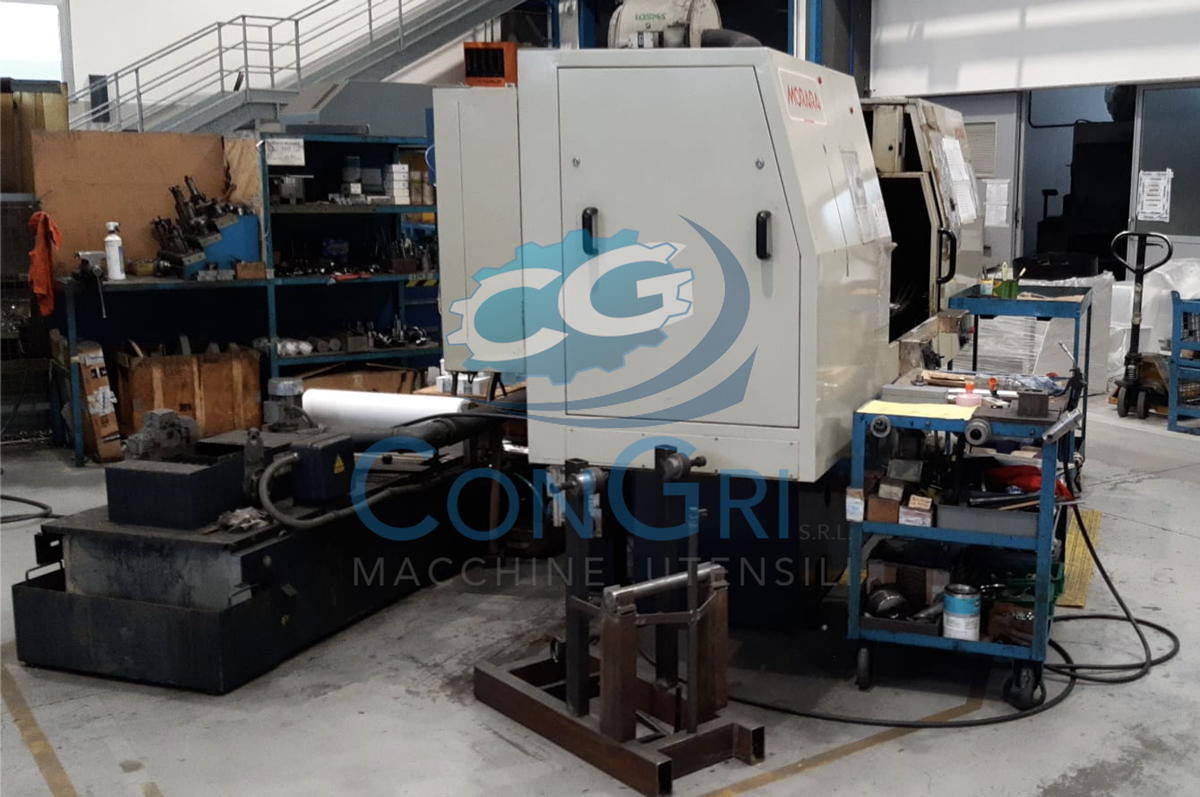

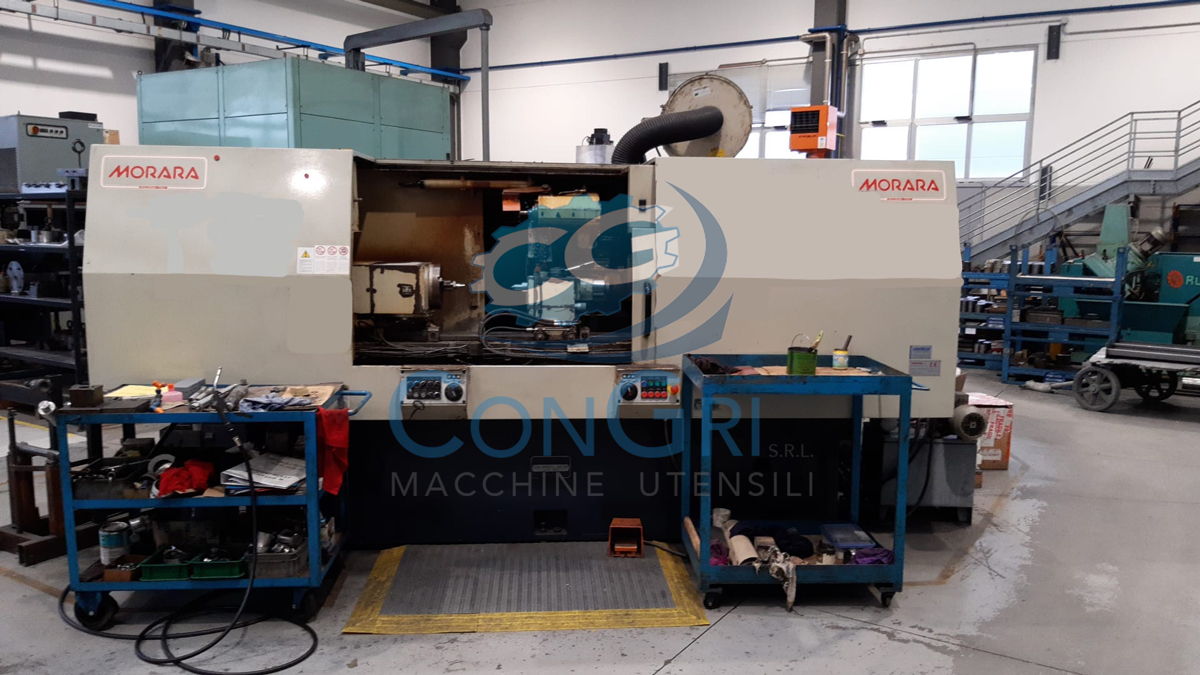

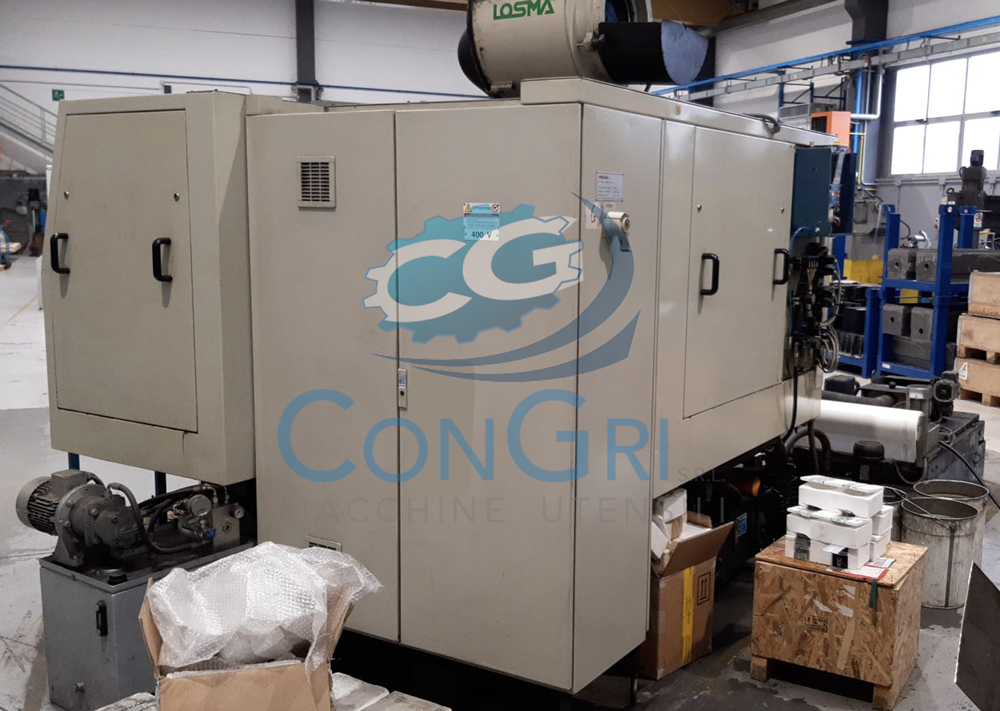

Morara Quick Grinder E 1000 CNC grinding machine
Morara Quick Grinder E 1000 CNC grinding machine
ConGri Macchine Utensili offers a used Morara Quick Grinder E 1000 CNC grinding machine. This used machine tool is a real bargain.
Technical Datasheet
| YEAR | 2002 |
| MAX GRINDABLE LENGTH | mm. 1.000 |
| HEIGHT OF POINTS | mm. 230 |
| MAX ALLOWED WEIGHT ON POINTS (EXTERNAL) | KG. 200 |
| GRINDING WHEEL DIMENSIONS | mm. 610 X 70 X 203,2 |
| WHEEL POWER | Kw. 7,5 |
| WORKPIECE HOLDING HEAD | |
| CONE ATTACHMENT | ISO 40 |
| ORIENTATION ON THE HORIZONTAL PLANE | 0/30 |
| COUNTERPOINT | |
| SLEEVE DIAMETER | mm. 55 |
| SLEEVE STROKE | mm. 45 |
| INTERNAL FIXING CONE | Morse 4 |
| MICROMETRIC ADJUSTMENT CYLINDRICITY | mm. +/- 0,1 |
| CONTROL | Fagor |
| WEIGHT | Kg. 6.000 |
| ACCESSORIES | Pneumatically activated indoor spindle, cooling tank with paper filter and magnetic purifier, air cleaner. |
| OVERALL DIMENSIONS ON THE GROUND | Length mm. 4.597 (with doors fully open) Depth mm. 2.900 Height mm. 2.449 |
All technical data shown are indicative, may be changed without notice and refer to the standard condition of new goods. Used goods may not have the same performance as new.
